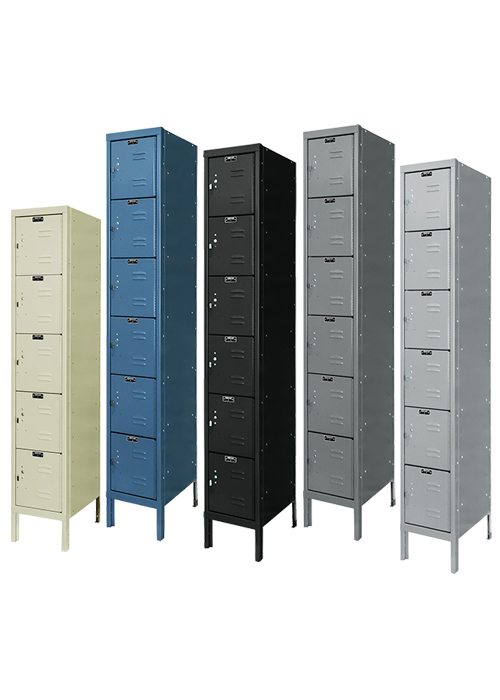

Box Lockers Are Ideal Where Space Is A Premium

Standard KD box lockers include louvered doors and are perfect for small personal storage.

Standard KD Box lockers are available in FIVE and SIX tier models. Use box lockers to maximize storage space when garments do not need to be hung.

Alt

Standard:

Alt

18 gauge continuous piano hinge

Standard:

Alt

Single-point Antimicrobial thru-the-door finger pull padlock hasp
(shown with optional padlock strike plate)

Features:

Body/Frame:
Knock down (KD) with 24 gauge solid body components. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
Doors:
8 gauge louvered doors are standard. Plain, Security-Plus and diamond perforated door styles are available
Handle:
Box door single-point thru-the-door antimicrobial finger pull padlock hasp
Latching:
12 gauge latch hook is welded to frame
Hinges:
16 gauge continuous piano hinge
Hooks:
2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1 - single hook for 9" wide openings 30” and higher
Shelves:
Hat shelf for single tier openings 60" and 72" high
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge
Warranty:
2 Year
Alt

Standard:

Alt

18 gauge continuous piano hinge

Standard:

Alt

Single-point Antimicrobial thru-the-door finger pull padlock hasp
(shown with optional padlock strike plate)

Strike Plate Upgrade:

Alt

Padlock strike plates protect finish from being marred by padlock

Color Selection:

See our Color Info Page for more information about colors.Color Info

Browse Photos

Notes:

Lockers can be ordered fully-assembled or knock-down for assembly at destination
Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.
Locks are not included.

Classic KD Box
5-Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
U1226-5 12 12 66 12 5 1-wide 5
U3226-5 12 12 66 12 5 3-wide 15
U1256-5 12 15 66 12 5 1-wide 5
U3256-5 12 15 66 12 5 3-wide 15
U1286-5 12 18 66 12 5 1-wide 5
U3286-5 12 18 66 12 5 3-wide 15
U1226-5A 12 12 66 12 5 1-wide 5
U3226-5A 12 12 66 12 5 3-wide 15
U1256-5A 12 15 66 12 5 1-wide 5
U3256-5A 12 15 66 12 5 3-wide 15
U1286-5A 12 18 66 12 5 1-wide 5
U3286-5A 12 18 66 12 5 3-wide 15
6-Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
U1228-6 12 12 78 12 6 1-wide 6
U3228-6 12 12 78 12 6 3-wide 18
U1258-6 12 15 78 12 6 1-wide 6
U3258-6 12 15 78 12 6 3-wide 18
U1288-6 12 18 78 12 6 1-wide 6
U3288-6 12 18 78 12 6 3-wide 18
U1228-6A 12 12 78 12 6 1-wide 6
U3228-6A 12 12 78 12 6 3-wide 18
U1258-6A 12 15 78 12 6 1-wide 6
U3258-6A 12 15 78 12 6 3-wide 18
U1288-6A 12 18 78 12 6 1-wide 6
U3288-6A 12 18 78 12 6 3-wide 18
