Fully Assembled Ready-To-Use KD Lockers

Lockers arrive fully-assembled and include padlocks & strike-plates for true out-of-the-box use. Ready-Built II™ also includes Slope Tops and 6" High Metal Base.

Available in single, double, triple and six tier models All lockers arrive ready-to-use. Lockers ship fully-assembled All units include one combination padlock per door for true out-of-the box use. Padlock Strike Plates are included for six tier doors. Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row.

Alt

Standard:

Alt

Locks included in stainless steel recessed handles for wardrobe lockers

Standard:

strike-plates

Locks and padlock strike plates are included for box lockers.

Standard:

Alt

Closed Metal Base prevents collection of debris

Standard:

Alt

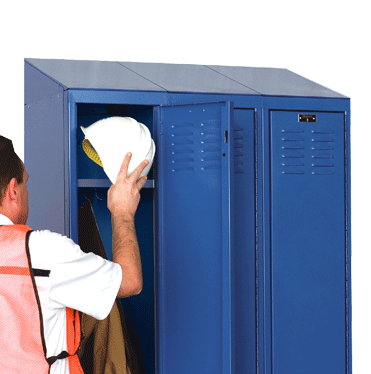

Slope Tops provide a more finished appearance and prevent items from being placed or stored on locker tops.

Features:

Body/Frame:
Knock down (KD) with 24 gauge solid body components. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
Doors:
16 gauge louvered doors, 18 gauge for 9" wide wardrobe and Box doors are standard.
Handle:
Deep-drawn seamless 304 stainless steel recessed handle with multi-point gravity lift-type latching for wardrobe doors. Box doors have friction catch finger pull handle.
Latching:
12 gauge latch hook is welded to frame
Hinges:
16 gauge continuous piano hinge
Hooks:
2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1 - single hook for 9" wide openings 30” and higher
Shelves:
Hat shelf for single tier openings 60" and 72" high
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge
Warranty:
2 Year
Alt

Standard:

Alt

Locks included in stainless steel recessed handles for wardrobe lockers

Standard:

strike-plates

Locks and padlock strike plates are included for box lockers.

Standard:

Alt

Closed Metal Base prevents collection of debris

Standard:

Alt

Slope Tops provide a more finished appearance and prevent items from being placed or stored on locker tops.

Color Selection:

See our Color Info Page for more information about colors.Color Info

Download Documents:

Browse Photos

Notes:

Lockers are fully-assembled. Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.

Ready-Built II™
Single Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-1ASB 12 12 78 72 1 1-wide 1
URB3228-1ASB 12 12 78 72 1 3-wide 3
URB1258-1ASB 12 15 78 72 1 1-wide 1
URB3258-1ASB 12 15 78 72 1 3-wide 3
URB1288-1ASB 12 18 78 72 1 1-wide 1
URB3288-1ASB 12 18 78 72 1 3-wide 3
Double Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-2ASB 12 12 78 36 2 1-wide 2
URB3228-2ASB 12 12 78 36 2 3-wide 6
URB1258-2ASB 12 15 78 36 2 1-wide 2
URB3258-2ASB 12 15 78 36 2 3-wide 6
URB1288-2ASB 12 18 78 36 2 1-wide 2
URB3288-2ASB 12 18 78 36 2 3-wide 6
Triple Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-3ASB 12 12 78 24 3 1-wide 3
URB3228-3ASB 12 12 78 24 3 3-wide 9
URB1258-3ASB 12 15 78 24 3 1-wide 3
URB3258-3ASB 12 15 78 24 3 3-wide 9
URB1288-3ASB 12 18 78 24 3 1-wide 3
URB3288-3ASB 12 18 78 24 3 3-wide 9
Six Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-6ASB 12 12 78 12 6 1-wide 6
URB3228-6ASB 12 12 78 12 6 3-wide 18
URB1258-6ASB 12 15 78 12 6 1-wide 6
URB3258-6ASB 12 15 78 12 6 3-wide 18
URB1288-6ASB 12 18 78 12 6 1-wide 6
URB3288-6ASB 12 18 78 12 6 3-wide 18
